   INDEX / PLOTTER PARA SUBLIMACION / CALANDRA
Calandra FLYTOO-FT-1900A-800/1000 mm

Description
MODELO FLYTOO-FT-1900A-800mm FLYTOO-FT-1900A-1000mm
área máx de trabajo 1900mm 1900mm
Diámetro del tambor 800mm 1000mm
Velocidad de trabajo 250-400m/horas 500-800m/horas
Modo de calentamiento
Potencia de la máquina 80Kw 96Kw
Temperatura máx 0--399℃ 0--399℃
Requerimiento eléctrico Trifasico 380V AC 50Hz Trifasico 380V AC 50Hz
Tubo de Calentamiento 30 PZ 36 PZ
Mesa de trabajo/largo 3350mm 3350mm
Embalaje(LxWxH)-mm/peso 3080X1530X1750mm/2500kg 3150X2150X2500mm/4500kg
tamaño de vidrio(L*W*H) 1895*1000*10mm *3PZA 1995*1000*10mm *3PZA

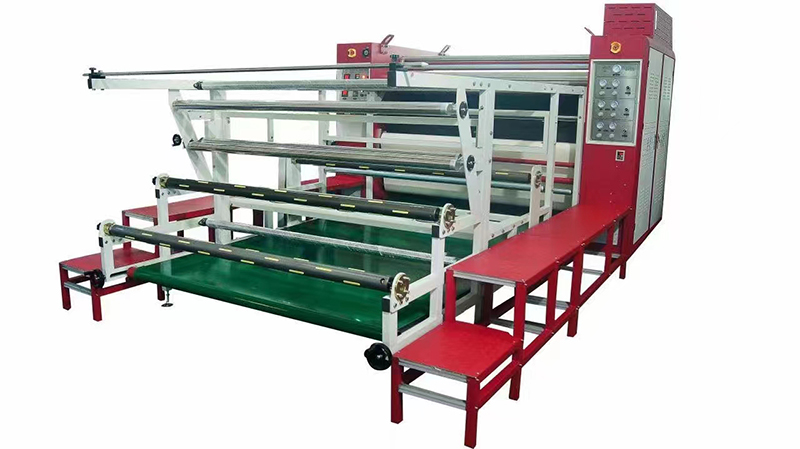

1900mm Digital Roller Heat Transfer Machine

1900mm New upgrade 800mm diameter upper feeding conveyor roller heat transfer machine for mouse pad cutting piece

Features:
1. Digital PLC touch screen programmable control system is adopted by Taiwan Dongyuan TECO,The system has powerfulfunctions, with counter function ,accurate reading, beautiful and generous,Chinese and English can be switched.
2. Infrared independent automatic intelligent correction system, the blanket does not deviate during continuous transfer.(Optional, will add about 50000bath at least)
3. The main drum is finely ground and chrome-plated surface treatment, wear-resistant, oil temperature heat conductioninternal circulation system in the drum, uniform temperature without color difference.
4. European and American style, made with ingenuity,each shaft end is exquisitely made,high frequency processing.
5. Low voltage 24V control, built in transformer, with infrared pressure defense hands device, safe and long life.

Application:

somos una empresa joven, audaz, entusiasta, con mucha experiencia tenemos los mejores equipos; plotter de impresiÓn de alta resolucion y gran formato, plotter de impresiÓn uv, plotter de sublimacion, calandra, cnc router, plotter de corte, laminadoras, planchas etc.
